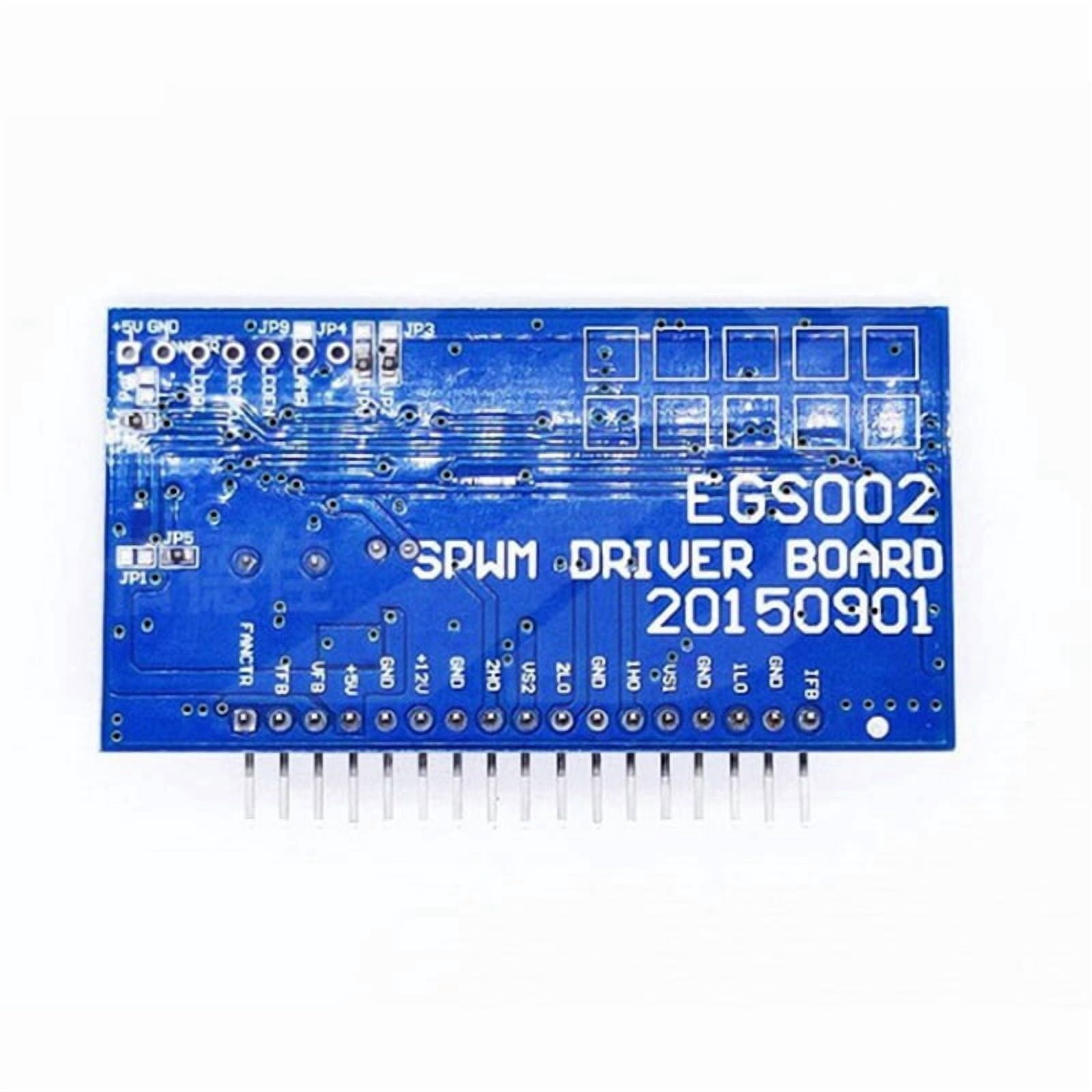

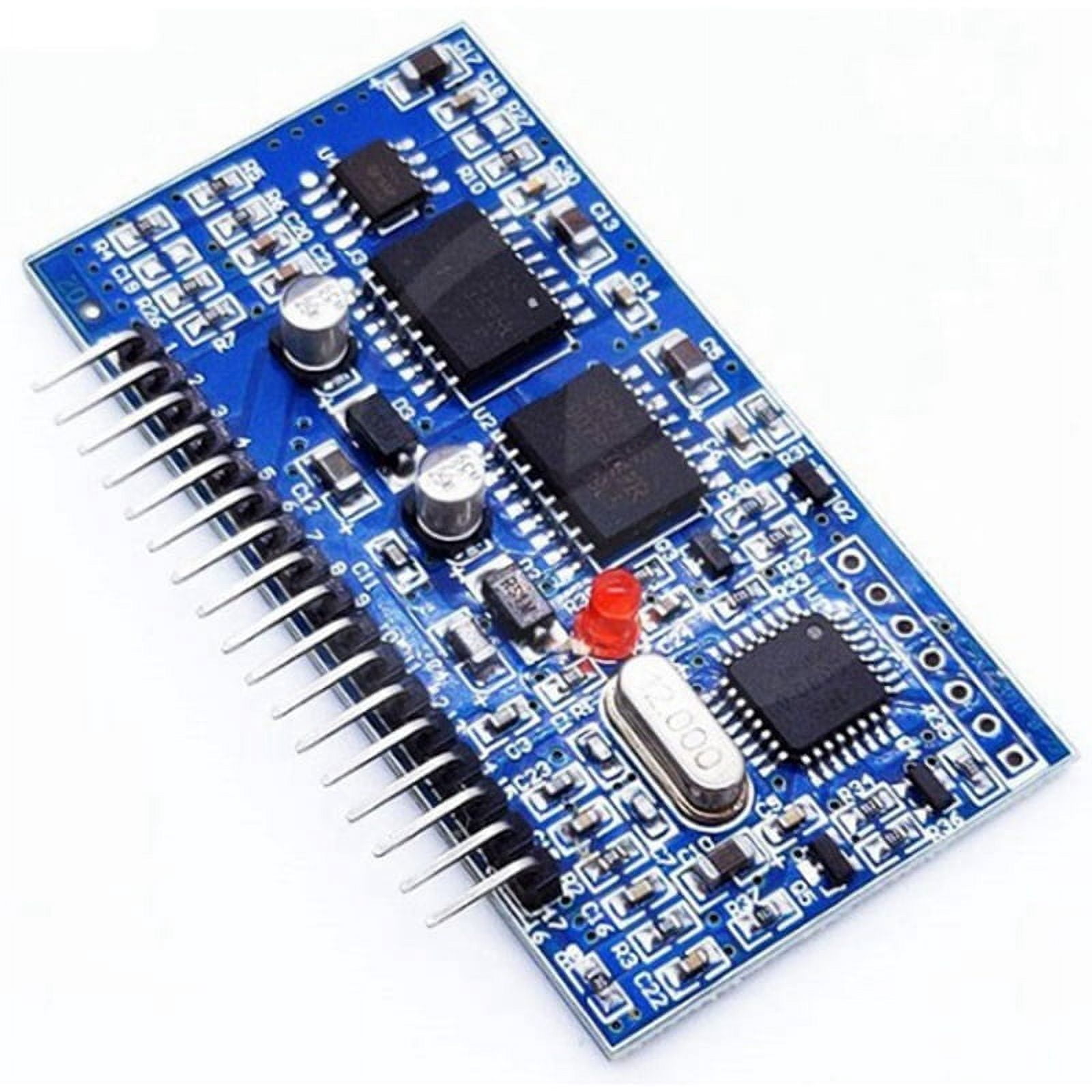

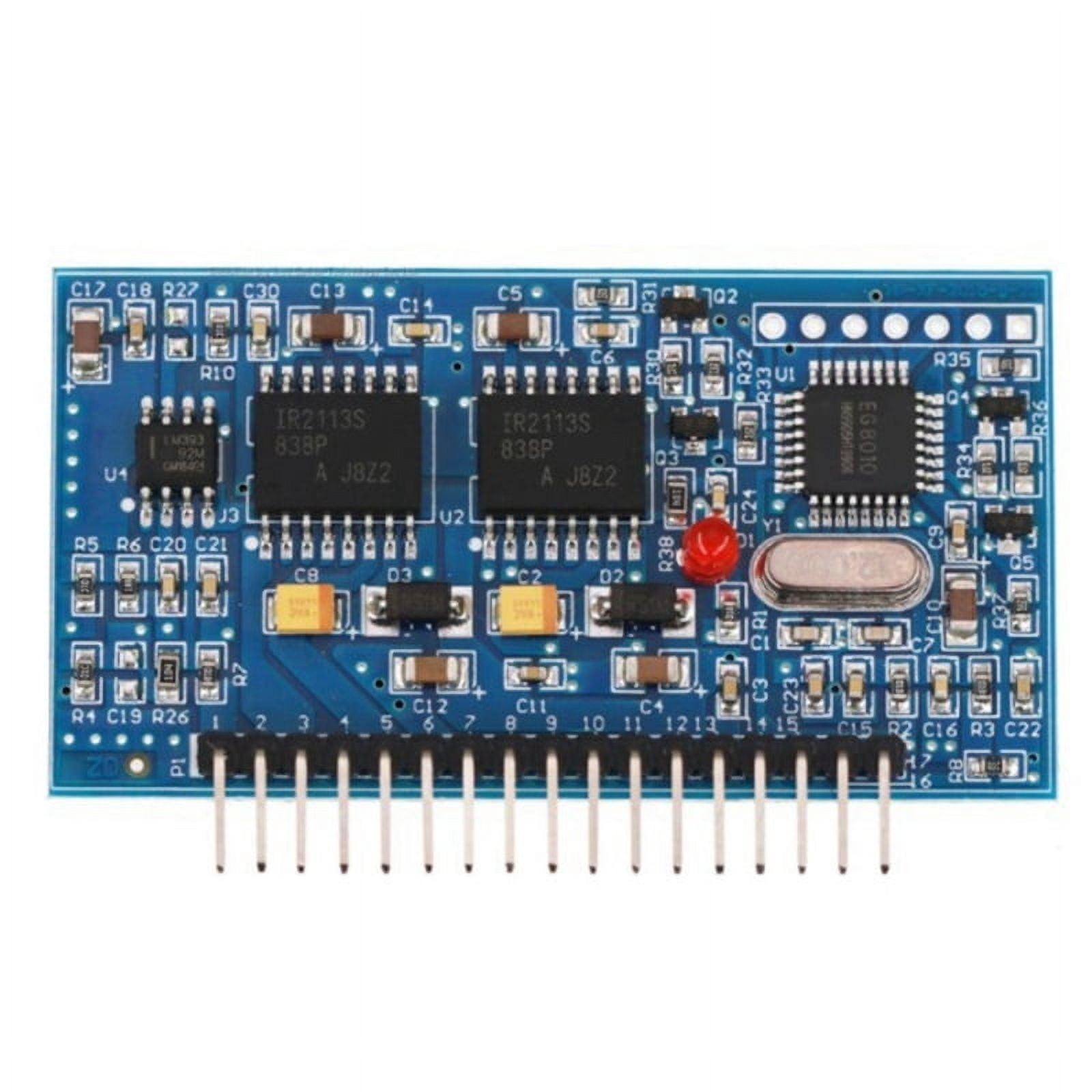

3X DC-DC DC-AC Pure Sine Wave Inverter Generator SPWM Boost Driver Board EGS002 "EG8010 + IR2110" Driver Module +LCD

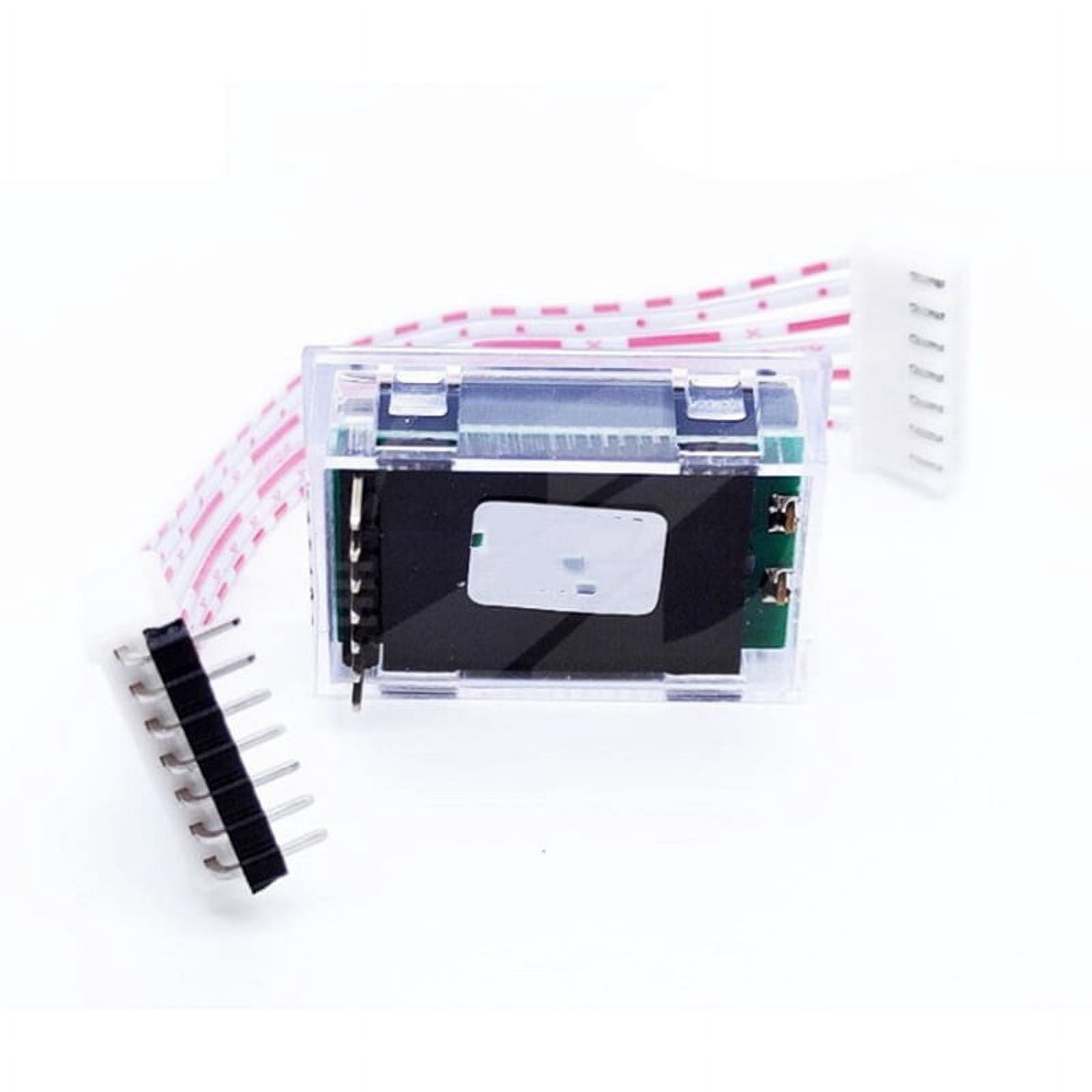

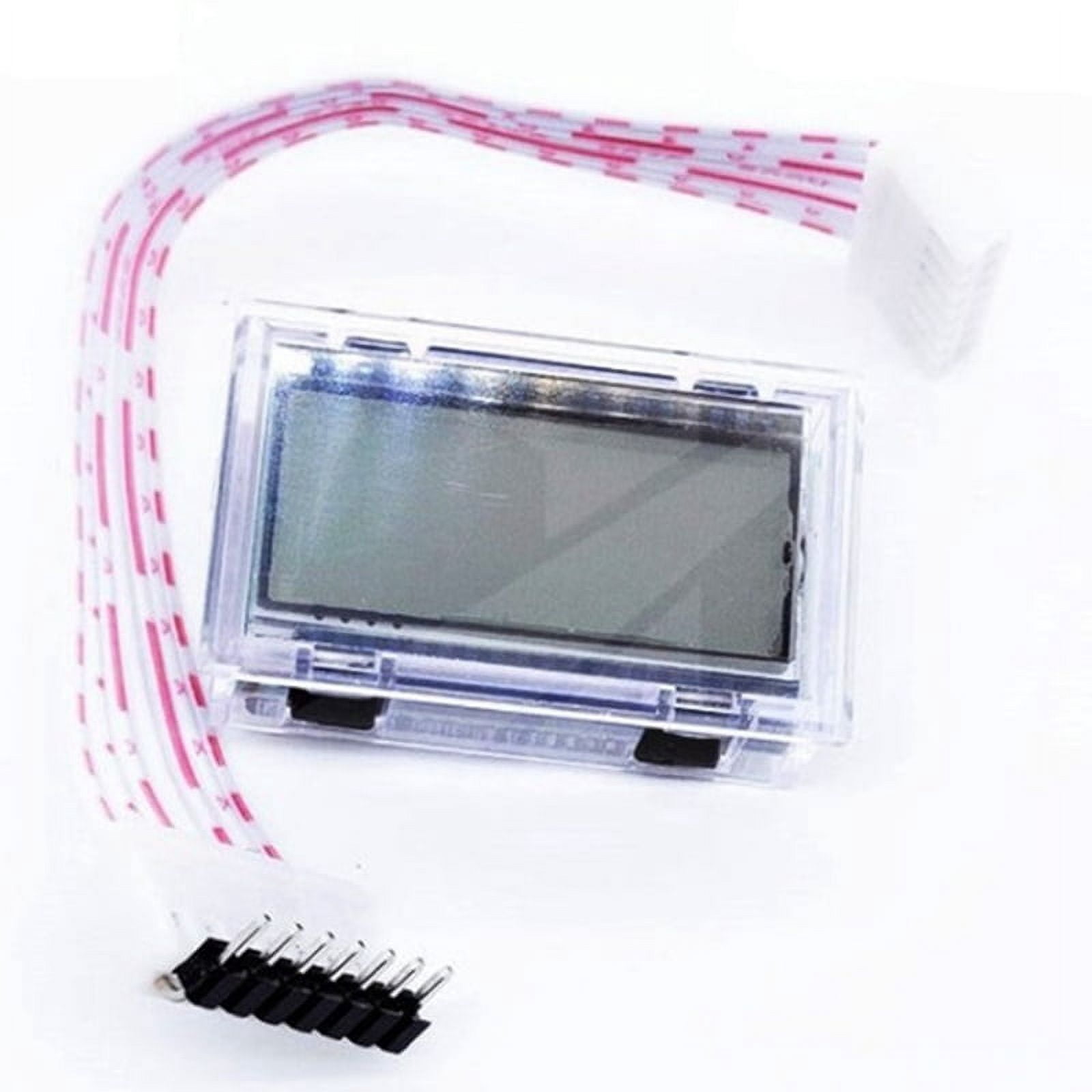

Overvoltage, undervoltage, overcurrent and overheating protection - Soft- mode pin setting the response time of 1S<br>Serial communication to set the output voltage, frequency and other parameters External<br>External serial port 128 x 32 LCD module 1602 display the voltage, frequency, temperature and electric current of the inverter and other information;<br>Applications: - Single phase pure sine wave inverter - PV Inverter - Wind power inverter - Uninterruptible Power Supply UPS System - Digital generator system - IF power - Single-phase motor speed controller - Single-phase inverter - Sine wave dimmer - Sine wave regulator -<br>Sine wave generator LCD description: Notice: LCD does not contain cable In the use of the LCD,Connection EGS002 driver board and LCD cable must use shielded cable, otherwise.Inverter, high-voltage high-current environment seriously interfere with the operation<br>Type: Voltage Regulator<br>Model Number: EGS002<br>Application: Computer<br>Supply Voltage: EG8010<br>color: blue<br>material: plastic<br><br>Package Contents:<br>3 x Module<br>3 x LCD<br><br>Only the above package content, other products are not included.<br>Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

• Unipolar and bipolar modulation - Comes with deadband control, pin set up 4 dead time: 300nS dead time; 500nS dead time; 1.0uS dead time; 1.5uS dead time - External 12MHz crystal oscillator - PWM carrier frequency 23.4KHz - Voltage, current, real time temperature feedback
• Features: - 5V single power supply - Pin set up four kinds of pure sine wave output frequency: fixed frequency 50 hz pure sine wave; 60 hz fixed frequency pure sine wave; 0-100 hz pure sine wave frequency is adjustable; 0-400 hz pure sine wave frequency is adjustable.
• EG8010 is a digital, function very well bring their own dead-time control of pure sine wave inverter generator chip, used in two-stage DC-DC-AC power conversion structure or single-stage DC-AC power frequency transformer Boost architecture, an external 12MHz crystal oscillator, to achieve high , and harmonic distortion is very small, 50Hz or 60Hz pure sine wave inverter ASIC.
• The chip uses CMOS technology, the internal integration of SPWM sine generator, dead time control circuit, the multiplier factor range, soft circuit, protection circuit, RS232 serial communication interface and a serial LCD driver module 1602 functions.
